Hello, world!

For starters, let's practice recoloring a couple of sprites in a small game titled I, Ball II.

Download and extract the archive iball2.zip. It contains a minimal binary distribution of a modified open source Spectrum emulator Unreal Speccy (the main executable file is renamed into iball2.exe), and a SNA image of I, Ball II. The snapshot is taken at the beginning of level 2, since it contains the sprites of our interest.

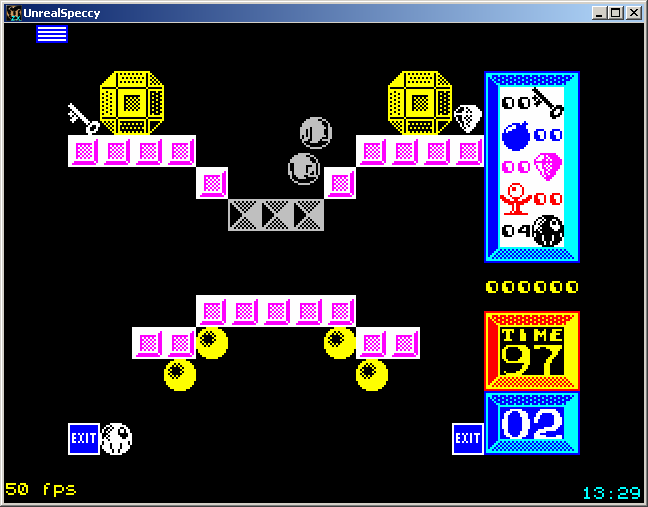

Run the game (i.e., execute iball2.exe) and make sure that everything works correctly. The controls are set to Sinclair joystick (keyboard keys 6, 7, 8, 9, 0). Initially, the game screen should look like this:

Now let's update the sprites of yellow balls and gray boxes:

1. Create a subfolder game inside the game folder. Here you should place both the old sprite pictures you want to substitute and their upgraded versions. For the balls and the boxes you'll need these pictures.

2. Create in the same game subfolder a file settings.txt, containing the following lines:

   0 block zx_yellowball.bmp pc_yellowball.bmp
   0 pixel zx_graybrick.bmp pc_graybrick.bmp

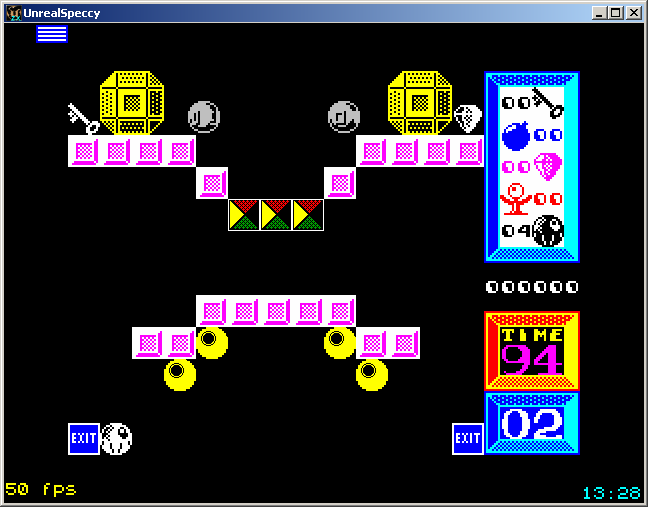

That's it! Run the game and enjoy the result:

Some final notes:

• Recolored screen is twice wider and twice higher than the original ZX Spectrum screen, so in most cases recolored sprites should also be twice wider and twice higher than their original counterparts.

• Both original and recolored sprites should be stored in the BMP 24bpp format. Areas painted with the pinkish color RGB(242, 10, 242) are treated as transparent.

• All non-transparent pixels in the original sprites must be either black (ink) or white (paper).

• The configuration file settings.txt consists of lines including at least the following compulsory elements:

  <layer-number> <rule-type> <original-sprite> <new-sprite>


  Layers are needed to organize background and foreground elements properly. The system draws sprites layer by layer, so foreground sprites should be placed on higher-numbered layers.

  Different rule types are used here to reduce CPU load. Fast cell-precise block rules assume that the original sprites are always aligned with the borders of 8x8 pixel blocks (which is a very common case for background objects). In contrast, slower pixel-precise pixel rules perform complete searching.

  In our case, yellow balls never leave their initial positions, so cell-precise matching is sufficient. However, gray boxes fall down when touched, so pixel-precise matching is necessary in their case.

In practice everything is usually not so simple. Keep reading!
